Name: Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use
Brand: Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
SKU: FC UPC-24, FC UPC-24
Price: 220.23 USD
Availability: InStock

cechy Galeria opis produktu Poprosić o wycenę

cechy

specyfikacje

Tworzywo: S136 ze stali nierdzewnej

Wymiary: 174 mm x 174 mm x 26 mm

Waga: 1,2 kg

Liczba błonnika: 24

Rozmiar uchwytu okuć: 2,5 mm

Typ złącza: PC PC

Powierzchnia czołowa: komputer

Średnica ferruli: 2,5 mm

Pojemność: 24 pozycje

Utrata wtrąceniowa: ≤0,20 dB

Strata zwrotu: ≥55 dB (komputer)

Promień krzywizny: 5-25 mm

Przesunięcie wierzchołka: 0-50μm

Wysokość światłowodowa: -100~+50μm

Kąt: 8,00+/-0,50°

Podkreślić:

Stainless Steel S136 Polishing Fixture

2.5mm Ferrule Holder Fiber Optic Polishing Jig

174x174x26mm Dimensions Optical Fiber Polishing Holder

Podstawowe informacje

Miejsce pochodzenia: Guangdong, Chiny

Nazwa handlowa: Chuanglixun

Numer modelu: FC UPC-24, FC UPC-24

Zapłata

Galeria

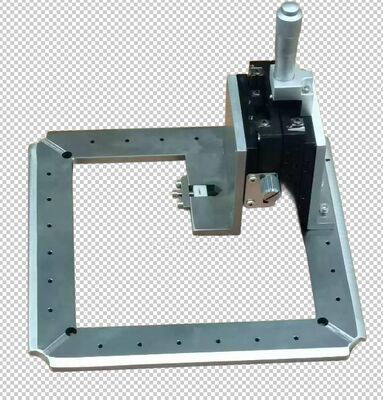

Stainless Steel S136 Optical Fiber Polishing Fixture with 2.5mm Ferrule Holder and 174x174x26mm Dimensions for FTTH Use

opis produktu

Optical Fiber Polishing Fixture

High-precision 2.5mm ferrule holder with dimensions of 174x174x26mm, specifically designed for FTTH applications. Constructed from premium stainless steel S136 for exceptional durability and performance.

Product Overview

This 32-port FC PC patch cord and pigtail fiber optic cable polishing holder delivers high stability and superior surface quality. Manufactured from high-quality heat-treated steel, the hardened S2316 steel construction ensures extended service life. Compatible with various connector types including SC, FC, ST, and LC, with customization available per customer requirements.

Key Features

Specifically designed for FC/PC connectors
Easy jig replacement with simple, flexible operation
High efficiency polishing capacity: 24, 32, or 36 connectors per cycle
First-pass yield for end-face quality reaches 98-100%
IPC structure with independent compression for each connector
Interference pass rate ≥98% (typically 100% per IEC standards)
PC return loss ≥55dB with insertion loss ≤0.20dB (typical)
Replaceable accessories for extended service life

Technical Specifications

Parameter	FC-PC-24	FC-PC-32	FC-PC-36
Brand	CLX	CLX	CLX
Connector Type	FC PC	FC PC	FC PC
End-face	PC	PC	PC
Ferrule Diameter	2.5mm	2.5mm	2.5mm
Capacity	24 positions	32 positions	36 positions
Insertion Loss	≤0.20dB	≤0.20dB	≤0.20dB
Return Loss	≥55dB (PC)	≥55dB (PC)	≥55dB (PC)
Application	Polishing assembled FC PC connectors
Material	Stainless Steel
Dimension (LWH)	17417426 mm
Net Weight / Gross Weight	1.5 kgs / 2.0 kgs
Suitable Machines	CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar equipment

Get a free Quotation via Us >>>GO

Polishing Performance Results

Polished Connector Ferrule Faces

High-quality end-face polishing delivers flawless results with no white spots, no scratches, and clearly visible fiber edges.

Insertion Loss & Return Loss Test Results

Connector Type	SM/UPC	SM/APC	MM/UPC
Insertion Loss	≤0.20dB	≤0.20dB	≤0.50dB
Return loss	≥55dB	≥60dB	≥30dB

Geometry Test Results

Parameter	UPC Criterion	APC Criterion
Radius of Curvature	5-25mm	5-12mm
Apex Offset	0-50μm	0-50μm
Fiber Height	-100~+50μm	-100~+50μm
Angle	n/a	8.00+/-0.50°

Manufacturer Profile

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.

Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is a comprehensive optical communications equipment company integrating research and development, production, after-sales service, and technical services. We provide not only high-quality products and excellent after-sales support but also complimentary technical assistance to our customers. Our expertise ensures effective solutions for technical challenges encountered in optical fiber connector production.
