High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield

1
MOQ
$650-750
Cena £
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Źródło zasilania: AC 100-240 V
Typ złącza: SC/FC/ST/LC/SMA905/MPO
elektryczność: 126w
Zakres częstotliwości: 50 Hz/60 Hz
Rozmiar maszyny: 330 mm x 290 mm x 22 mm
Waga netto: 28 kg
Temperatura pracy: 10 ~ 40 stopni Celsjusza
wilgotność względna: 15%~85%
Utrata wtrąceniowa: ≤0,20dB (typowo)
Strata zwrotu: PC(UPC) ≥55dB, APC ≥60dB
Płyta obrotowa OD: 127 mm (5 cali)
Prędkość obrotowa: 140 obr./min
Skok wysokości: < 10 um
Konfiguracja ciśnienia: 21 ~ 36 N/cm2
Poziom hałasu: < 50dB
Podkreślić:

48 pcs MU/LC capacity Fiber Optic Polishing Machine

,

36 pcs SC/FC/ST capacity Patch Cord Polishing Machine

,

98% first pass yield Fiber Connector Polisher
Podstawowe informacje
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: Chuanglixun
Numer modelu: CLX-02E, CLX-02E
Zapłata
opis produktu

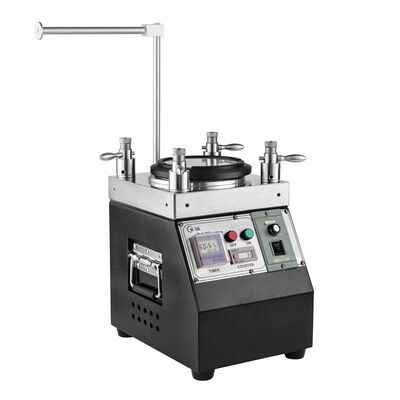

CLX-02E FTTH Fiber Optic Polishing Grinding Machine
Professional fiber optic polishing machine designed for patch cord production lines, compatible with SC/FC/ST/LC/SMA905/MPO connectors. Operates on AC 100-240V power supply.
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 0
Product Overview
This fiber optic polishing machine is engineered based on international universal standards and extensive hands-on experience. It exceeds GR-326 end face geometry requirements and features advanced four corners compression and IPC holder technology for industry-leading results.
Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planet orbit polishing trails with adjustable rotation speed (140RPM standard)
  • Maximum capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
  • High efficiency with 98%～100% first pass yield rate

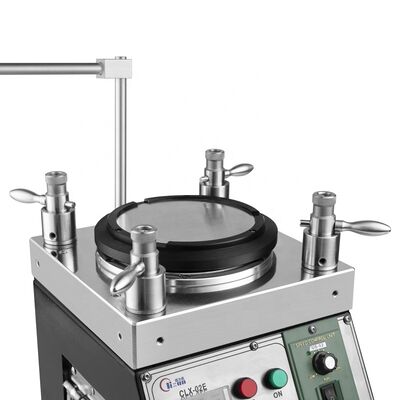

  • IPC structure with independent compression for each connector
  • High-quality stainless steel construction ensures precision and durability
  • Designed for 8-10 years operational lifetime
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 1 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 2 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 3 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 4
Technical Specifications
Machine Type CLX-02E
Machine Dimensions 240mm × 240mm × 260mm (L×W×H)
Net Weight 28kg
Power Input 110-230VAC 50Hz/60Hz
Electric Power 126W
Relative Humidity 15%-85%
Operating Temperature 8℃-45℃
Rotation Plate Diameter 127mm (5 inch)

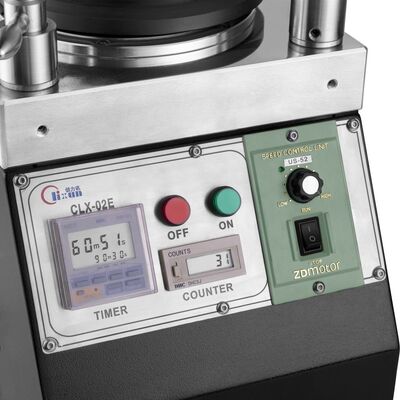

Time Settings 99 min 99 sec maximum
Rotation Speed 140 RPM
Plate Jumpiness Height < 10 μm
Pressure Configuration 21-36 N/cm²
Noise Level < 50 dB
Performance Results
Fiber End Face Quality
High-quality end-face polishing with no white spots or scratches. Fiber edges are clearly visible and well-defined.
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 5
Insertion Loss & Return Loss Performance
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return Loss ≥55dB ≥55dB ≥30dB
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 6
Geometry Test Results
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 7 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 8
Manufacturer Information
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide high-quality products, comprehensive after-sales support, and free technical assistance for fiber optic connector production challenges.
Product Gallery
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 9 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 10 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 11 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 12 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 13
Certifications
High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 14 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 15 High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC and 36 pcs SC/FC/ST Capacity for 98% First Pass Yield 16
Shipping & Support
We utilize major international carriers including DHL, FEDEX, UPS, EMS, TNT, or Sea freight. We can accommodate your preferred shipping account and select the most cost-effective option based on quantity.
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your minimum order quantity?
MOQ is 1 piece.
Do you provide sample services?
Yes, we provide samples for evaluation.
How will you ship to me?
Standard shipping via DHL or FedEx takes 4-6 days. Timing may vary based on order quantity.
What payment methods do you accept?
We accept advance booking, T/T, and T/L payment methods.
What is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty, we continue to provide accessories at cost.
Do you provide customized services?
Yes, we offer customized solutions based on customer requirements and specifications.
