Dom /Produkty/Oprawa do polerowania/16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing

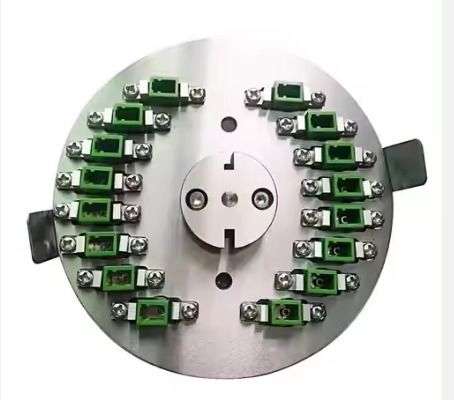

16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing

1
MOQ
$218.52-236.45
Cena £
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Waga netto: 0,5 kg
Tworzywo: utwardzać stal nierdzewną
Wymiary: 110*5mm
Liczba błonnika: 16
Szybkość przejścia 3D: 100%
Utrata wstawiania: ≤0,20 dB
Zwrot utraconego komputera: ≥55db
Strata zwrotu APC: ≥60dB
Typ złącza: SC, FC, LC, ST (PC/APC)
Typ maszyny polerskiej: Maszyna polerska z centralnym ciśnieniem
Liczba rdzeni światłowodowych: 16
Model: LC/APC, LC/UPC
Jakość końcówki tulei: 100% wydajności przy pierwszym przejściu
Obróbka cieplna: Tak
Maksymalna liczba tulejek na cykl: 16
Podkreślić:

16 Port Polishing Jig

,

100% First Pass Yield Polishing Fixture

,

0.20dB Insertion Loss Fiber Optic Polishing Jig
Podstawowe informacje
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: Chuanglixun
Numer modelu: LC/APC
Zapłata
opis produktu
LC-APC-12 Fiber Optic Cable Polishing Jig For Fiber Cable Fiber Optic Polishing Fixture
Efficient and durable fiber optic 16 port LC APC polish jig optical fiber polishing fixture for patch cord manufacture.
Product Description
This fiber polishing fixture/jig offers high stability and excellent surface quality. Manufactured from high-quality heat-treated steel (hardened steel S2316) for extended service life. Available in various connector types including SC, FC, ST, and LC, with custom configurations available upon request.
Key Features
  • Designed specifically for LC/APC(UPC) connector polishing
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 16 ferrules simultaneously
  • Produces excellent ferrule end-face polishing quality
  • Polished ferrule dimensions comply with IEC standards
  • 100% first pass yield for end face quality
  • Constructed from heat-treated stainless steel for precision and durability
  • Custom ferrule grinding designs and services available
Technical Specifications
Model LC/APC, LC/UPC
Net Weight 0.5kg
Compatible Connector Types SC, FC, LC, ST (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 16
Material Hardened Stainless Steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 2 Years
Product Images
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 0 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 1 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 2 16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 3
Shipping Information
We typically ship via DHL, FedEx, UPS, EMS, TNT or Sea freight. You may provide your courier account for us to select the most cost-effective shipping method based on order quantity.
16 Port LC/APC Fiber Optic Polishing Jig with 100% First Pass Yield and 0.20dB Insertion Loss for High Efficiency Polishing 4
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, samples are available.
How will you ship to me?
Shipping typically takes 4-6 days via DHL or FedEx, depending on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
2-year warranty covering free repairs (excluding consumables). After warranty period, we continue to provide replacement parts at cost.
Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
